2-1318119-4
Manufacturer:
TE Connectivity
Mfr.Part #:
2-1318119-4
Datasheet:
Description:

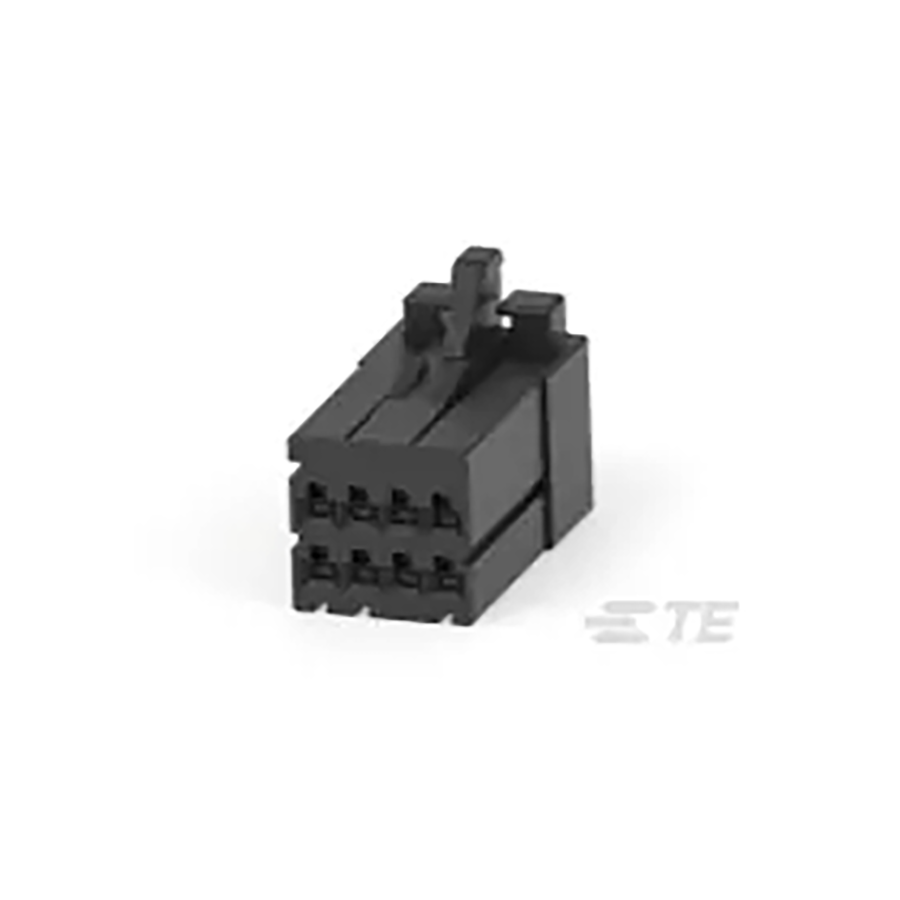

Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:8 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 11.4 mm |
| Width | 15.7734 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 19.9898 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 20 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 2.5 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 8 |
| ELV | Compliant |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 18 AWG |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 3.75 mm |
| Housing Material | Polyester |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Contact Gender | Female |
| VDE Tested | No |
| Preloaded | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 283
Distributors
pcbx
pcbxUnit Price$0.73594
Ext.Price$0.73594
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73594 | $0.73594 |
| 10 | $0.60077 | $6.00770 |
| 25 | $0.55379 | $13.84475 |
| 50 | $0.51048 | $25.52400 |
| 100 | $0.47055 | $47.05500 |
| 300 | $0.43987 | $131.96100 |
| 500 | $0.41118 | $205.59000 |
| 1000 | $0.39043 | $390.43000 |
